Network Service — Customer-Driven Generation

What The Generator Does

Run the script from the repository root (or any working directory, using paths relative to where you invoke Python). Pass --customer <FolderName> where FolderName matches Customers/<FolderName>/Network/network_config.json. The generator parses JSON only; it does not guess missing fields.

Inside networkStack, the tool selects the first object whose use field is exactly true. Every other stack entry is ignored for code generation. That chosen stack defines which TCP/IP integration you build (CycloneTcp, Linux, lwIP profile, etc.), its init header and function name, and the interfaces subtree.

Under interfaces, only two arrays matter today: ethInterfaces and gsmInterfaces. Within each array, only entries with use: true become active. The generator assigns global interface indices in order: all active Ethernet entries first (in array order), then all active PPP/GSM entries (in array order). Those choices drive macro names (for example ETH_ vs ETH0_/ETH1_ when multiple links exist) and the call order in networkServiceStartInterfaces().

PS> cd C:\Users\...\Aviora
PS> python Customers/generate_network_service.py --customer LinuxGcc

- Generated network service for customer: LinuxGcc
- ...\Customers\LinuxGcc\Network\Cus_Network_Config.h
- ...\Customers\LinuxGcc\Network\Cus_Network_Config.c
- ...\Customers\NetworkService_Config.h

Generated Files And Who Consumes Them

Build-Time Data Flow (Mermaid)

The diagram below is the mental model: one JSON profile per customer folder drives one generator run, which always writes the same three output locations. Your CI can run the script to ensure headers match JSON.

flowchart LR
  subgraph cfg["Configuration"]
    J["network_config.json"]
  end
  subgraph gen["Generation"]
    P["generate_network_service.py\n--customer X"]
  end
  subgraph out["Outputs"]
    H["Cus_Network_Config.h"]
    C["Cus_Network_Config.c"]
    R["NetworkService_Config.h"]
  end
  J --> P
  P --> H
  P --> C
  P --> R


Runtime Sequence

After linking, startup is linear. appNetworkServiceStart() first initializes the selected TCP/IP stack through the macro that points at your stack’s init function (for example appCycloneTcpIpStackInit or appLinuxTcpIpStackInit). The service then waits about one second so the stack can settle. Finally it calls networkServiceStartInterfaces(), which walks every active Ethernet manager start function, then every active PPP manager start function, combining status with bitwise OR so a partial failure is still visible in the return value.

sequenceDiagram
  participant App as AppNetworkService
  participant Init as networkServiceInitTCPIPStack
  participant Stack as NET_STACK_STACK_INIT_FUNCTION
  participant Start as networkServiceStartInterfaces
  participant Eth as ETH*_START
  participant Ppp as PPP*_START
  App->>Init: appNetworkServiceStart
  Init->>Stack: stack init
  Note over App: delay ~1s
  App->>Start: start interfaces
  Start->>Eth: Ethernet in order
  Start->>Ppp: PPP/GSM in order


Include Chain

The application never includes a long path into Customers/LinuxGcc/... directly. It includes NetworkService_Config.h, which is regenerated to point at the active customer’s Cus_Network_Config.h. That header in turn pulls in the stack’s public API header and each interface manager header listed in JSON, so the compiler sees the same symbols the macros reference.

flowchart TB
  A["AppNetworkService.c"] --> B["Customers/NetworkService_Config.h"]
  B --> C["Customers<customer>/Network/Cus_Network_Config.h"]
  C --> D["Stack header\ne.g. AppCycloneStack.h"]
  C --> E["Interface headers\nAppCycloneEthMng.h ..."]


Animated Overview (Four GIFs)

The following loops are produced by docs/network/generate_network_docs_gifs.py (requires Pillow). They are intentionally small so four of them fit in a 2×2 grid: top row shows the generator pipeline and runtime; bottom row shows the include chain and the JSON selection rules. Re-run the script after editing the Python drawer if you change the storyboard.

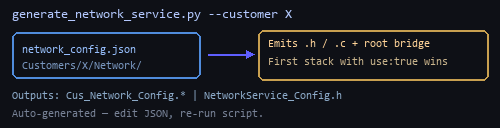

Generator Pipeline. Customer network_config.json is the single source of truth. The script emits the customer Cus_Network_Config.h and .c plus the root NetworkService_Config.h bridge.

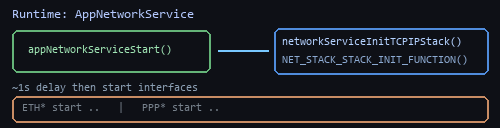

Runtime. Stack initialization runs first, then a short delay, then networkServiceStartInterfaces() invokes each active Ethernet and PPP start macro in order.

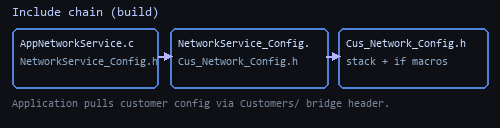

Include Chain. Application code includes one stable header; that header forwards to the generated customer header that carries stack and interface macros.

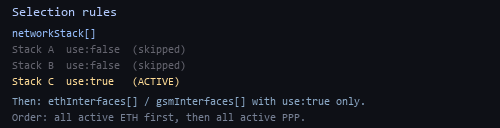

Selection Rules. Only the first stack with use: true is used. Within it, only interface entries with use: true are expanded; Ethernet is ordered before PPP.

Generated C Sketch

The exact macro names depend on how many Ethernet and PPP links are active. With one of each, the .c file looks like the fragment below. With multiple links, prefixes become ETH0_, ETH1_, PPP0_, etc., matching the order in JSON.

Typical Cus_Network_Config.c Body

RETURN_STATUS networkServiceInitTCPIPStack(void)
{
    return NET_STACK_STACK_INIT_FUNCTION();
}

RETURN_STATUS networkServiceStartInterfaces(void)
{
    RETURN_STATUS retVal = SUCCESS;
    retVal |= ETH_APP_MANAGER_START_FUNCTION();
    retVal |= PPP_APP_MANAGER_START_FUNCTION();
    return retVal;
}

For field-by-field JSON reference and multi-interface naming, see JSON Configuration. For stack-specific source layout, use the sidebar links for CycloneTcp, Linux, or lwIP.
